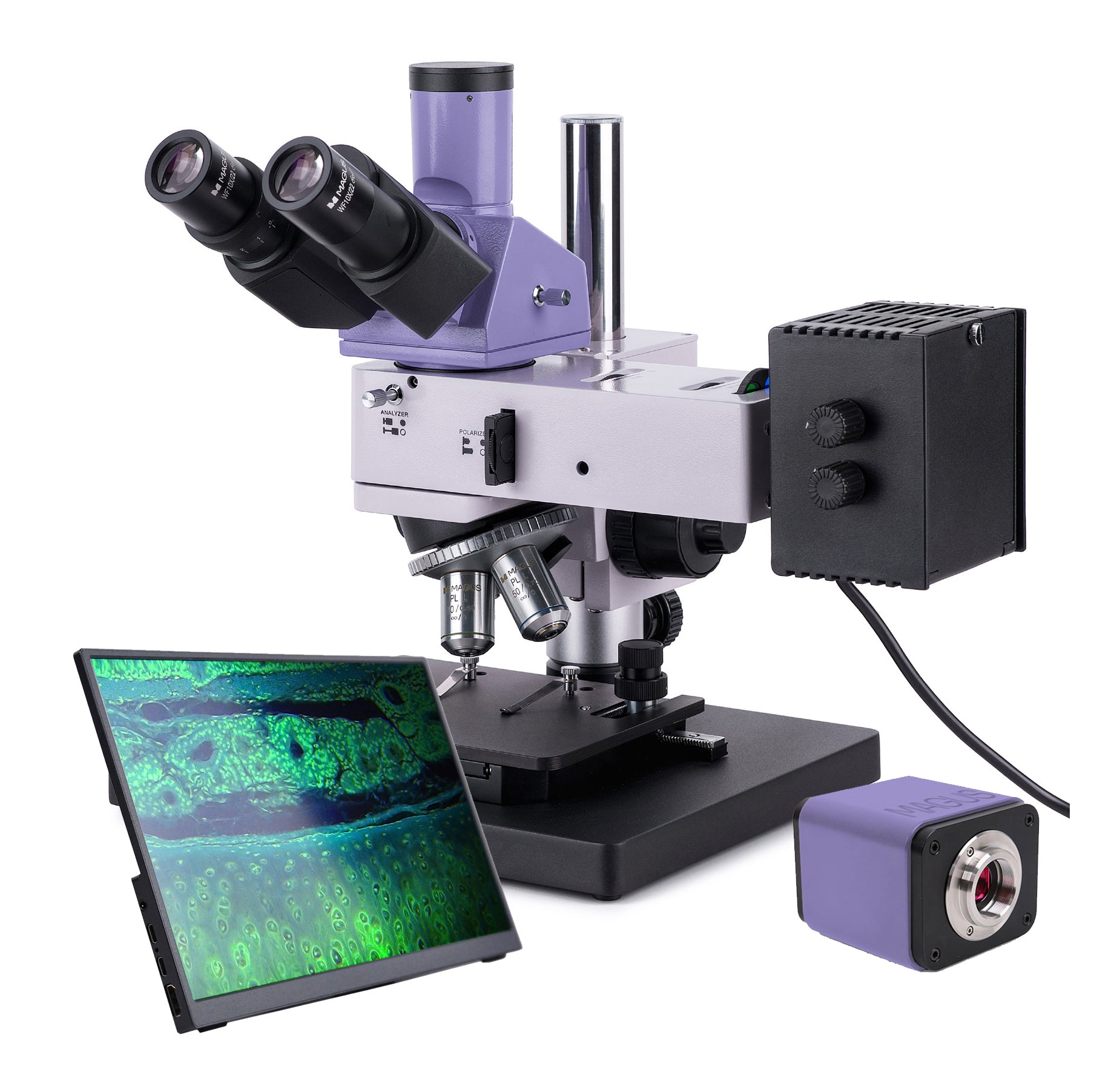

merk | magus |
garantie, jaren | 5 |
ean | 5905555018348 |
pakketgrootte (lxwxh), cm | 39.4x37.4x73 | < /tr>
Verzendgewicht, kg | 22.25 |
kop | trinocular |
kop hellingshaak | 30 ° |
vergrotingsbereik | van 200x tot 800x |
oculair buisdiameter, mm | 30 |
Doelstellingen | Infinity Plan Achromatic: PL L5X/0.12, PL L10X/0.25, PL L20X/0.40, PL L50X/0.70 Parfocale afstand 45 mm (*Optioneel: PL L40X/0.60, PL L60X/0.70, PL L80X/0.80, PL L100X/0.85 (DROY)) < /td> |
Revolving Nosepiece | voor 5 doelstellingen |
Werkafstand, mm | 26.1 (5x) 20.2 (10x) 3,98 (40x) 2.08 (60x) 8,80 (20x) 3,68 (50x) 1,25 (80x) 0.40 (100x) |
interpupillary afstand, mm, mm, mm, mm, mm, mm, mm, mm, mm, mm, mm | 48 - 75 |
Stage, mm | 185x140 |
Stage Verplaatsingsbereik, mm | 35/30 |
oculair diopter -aanpassing, diopters | ± 5 (op de linkerbuis) |
diafragm | ingebouwd diafragma en veld |
focus | coaxiaal, grof (met grove focusspanningsaanpassing) en fijne (0,002 mm) |
helderheidsaanpassing | ja |
< TD> Lichtbrontype 12v/30w |
bedrijfstemperatuurbereik, ° C | 5 - 35 | < /tr>
Montage- en installatieproblemen Level | gecompliceerd |
verlichtingslocatie | Upper |
sensor | sony exmor/starve cmos |
color/monochrome | kleur / td> |
megapixels | 2 |
maximale resolutie, pix | 1920x1080 |
sensorgrootte | 1/2 '(7.2x4.05mm) |
pixelgrootte, μm / td> |
3.75x3.75 |
lichtgevoeligheid | 1175mv met 1/30s |
Signaal/ruisverhouding | 0,15 mV bij 1/30s |
belichtingstijd | 0,04ms - 1000ms | < /tr>
video -opname | ja |
afbeeldingsformaat | *. JPG, *.tif < /td> |
Spectral-bereik, nm | 380–650 (ingebouwd IR-filter) |
sluitertype | ers (elektronische rollende sluiter) |
Systeemvereisten | Windows 8/10/11 (32bit en 64bit), Mac OS X, Linux, tot 2,8 GHz Intel Core 2 of hoger, minimaal 4 GB RAM, USB2.0-poort, RJ45, CD-ROM, 19 'of groter display |
Mount Type | c-mount |
camera voeding | dc adapter 12v, 1a |
Camera bedrijfstemperatuurbereik, ° с | -10-50 |
Bedieningsvochtbereik, % | 30-80 |
software | hdmi: ingebouwde USB: magus view |
type | licht/optisch, digitaal, metallurgisch |
Nozzle | siedentopf |
vergroting, x | 50–500 BASIC (*Optioneel: 50–1000/1000/1500/2000/2500) |
oefieces | 10х /22 mm, oogverlichting: 10 mm (*Optioneel: 10x/22 mm met schaal, 12,5x/14 15x/15 20x/12 25x/9) |
Stage Functies | Twee-as mechanisch stadium Microscoop Basisgrootte: 300x240 mm |
Illumination | halogeen |
< TD> Voeding 220 ± 22V, 50Hz, AC Network |
Lichtfilters | groen, blauw, geel, matt < /td> |
extra | ingebouwde analysator en verwijderbare polarisator |
Gebruikersniveau | ervaren gebruikers, professionals |
Toepassing | metallurgical |
onderzoeksmethode | Bright Field, polarisatie |
pouch/case/tas in set | stofomslag |
interface connectoren | USB 2.0, HDMI 1.4 |
geheugenkaart | SD tot 32 GB |
Mogelijkheid om extra apparatuur aan te sluiten | USB -muis, flashstick (USB) |
framesnelheid, FPS bij resolutie | 60@1920x1080 (HDMI), 50@1920x1080 (USB) |
Plaats van installatie | trinoculaire buis, oculair tube in plaats van een eyepiece |
Video -indeling | *. H264/*. H265,*.mp4 |
body | CNC aluminiumlegering |
Specificaties van de DC -vermogensadapter | Input: AC -spanning 100–240V, 50/60Hz, uitgang: DC Voltage 12V 12V /1a |
=== Delimiter === | monitorspecificaties |
Type matrix < /td> |
ips |
display diagonal, inch | 13.3 |
display resolutie, px | 1920x1080 (Full HD) |
beeldverhouding | 16: 9 |
helderheid, cd/m² | 400 |
nummer van weergegeven kleuren | 16,7 m |
contrast | 1000: 1 |
horizontale/verticale kijkhoek, ° | 178/178 < /td> |
Grootte van het zichtbare schermgebied (wxh), mm | 295x165 |
pixel pitch (wxh (wxh (wxh (wxh (wxh ), mm | 0.154x0.154 |
frequentie van optische bron, hz | 60 |
Type matrix achtergrondverlichting | LED |
LED -achtergrondverlichting Lifetime, H | 50000 | < /tr>
interface | hdmi |
bedrijfstemperatuurbereik, ° C | -15-55 < /td> |
Bedrijfsvochtbereik, % | 10 - 90 |
voeding | AC 110–220V, DC 5–12V/1A (Type-C) |
stroomverbruik, W | 12 (max.) |
